Launch X431 ECU & TCU Programmer

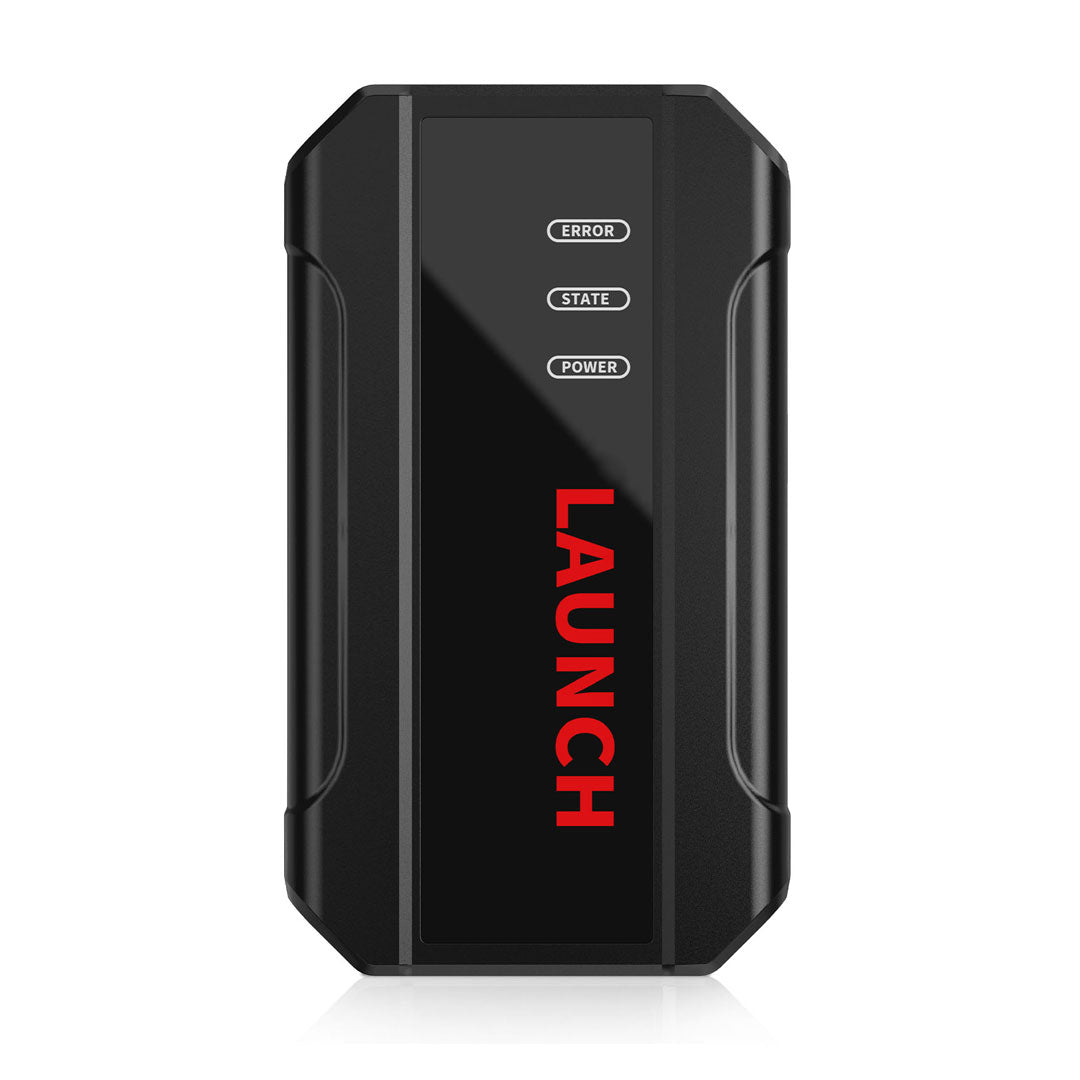

Launch X-431 ECU & TCU Programmer reads, writes and clones engine (ECU) and gearbox (TCU) control units straight from the chip, on the bench. It is a standalone unit that runs from a Windows PC over USB, so it does not need an X-431 tablet.

What it does

• Chip ID, EEPROM and FLASH read/write — back up the original data before any work and restore it after a repair or a failed software update
• Data cloning — copies a unit's data onto a replacement. The built-in cloning routine is mainly for VW, Audi and Porsche engine ECUs; other makes are done by direct read and write
• Immobiliser shut-off and file checkout — the software processes your backup file online and saves the corrected file

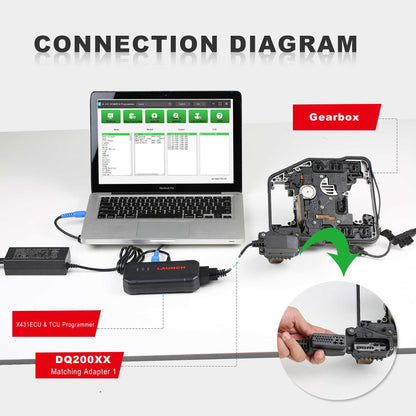

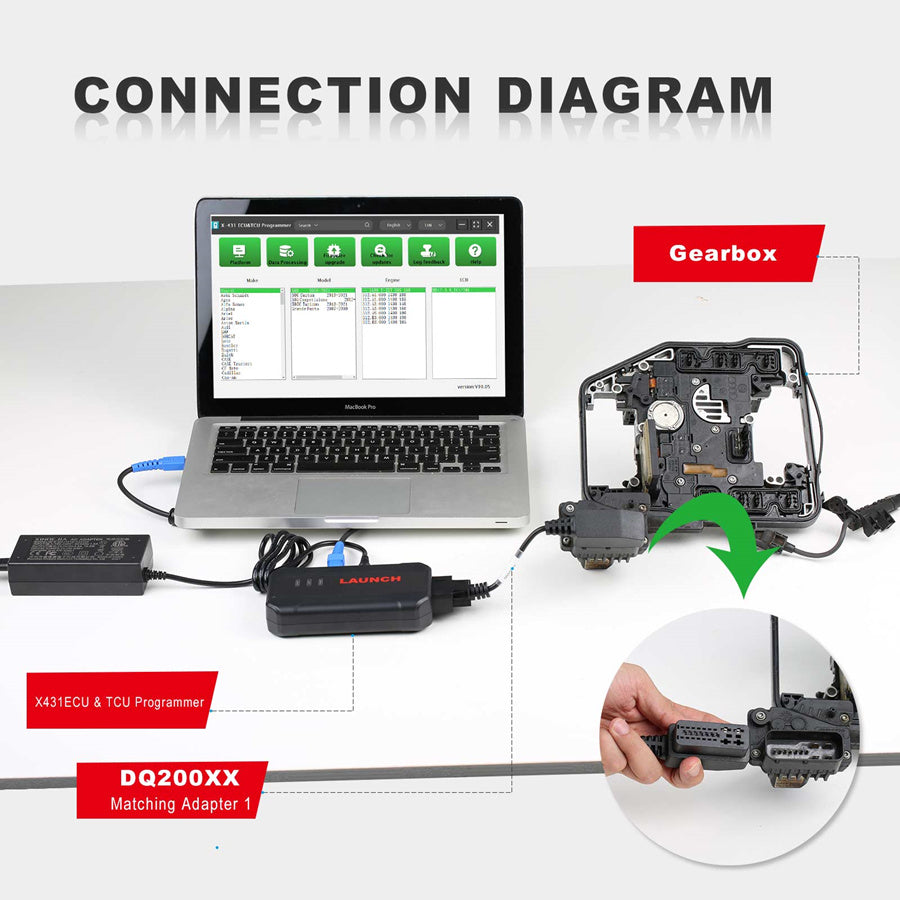

• Bench connection with wiring diagrams — pick brand, model, engine and ECU, and the software shows the wiring to follow

Supported control units

Engine ECUs: Bosch EDC16, EDC17, MD1, MG1, ME17, MED17, MED9, MEV17 and MEVD17; Continental/Siemens MSD, MSV, SDI, SIM271 and Simos 8, 12 and PCR2.x; Delco GM E-series.

Gearbox TCUs: ZF 6HP, 8HP, 7DCT300 and AL; Bosch 9G-Tronic; Getrag DPS6, DKG, MPS6, SPS6 and VGS; Temic DL, DQ and VL381; Delco GM 6T/6L.

This is the supplier's list and it grows with software updates. Send us the ECU or gearbox part number before ordering and we will check it.

What you need to work with it

• A Windows PC with a USB port and an internet connection (software download and online data processing)
• One-time activation with the code in the supplied password envelope
• The matching adapter for the control unit: five matching adapter sets (A to E) are in the box, and gearbox cloning uses the gearbox clone adapter cables listed below
• It does not do key programming — this is the standalone version

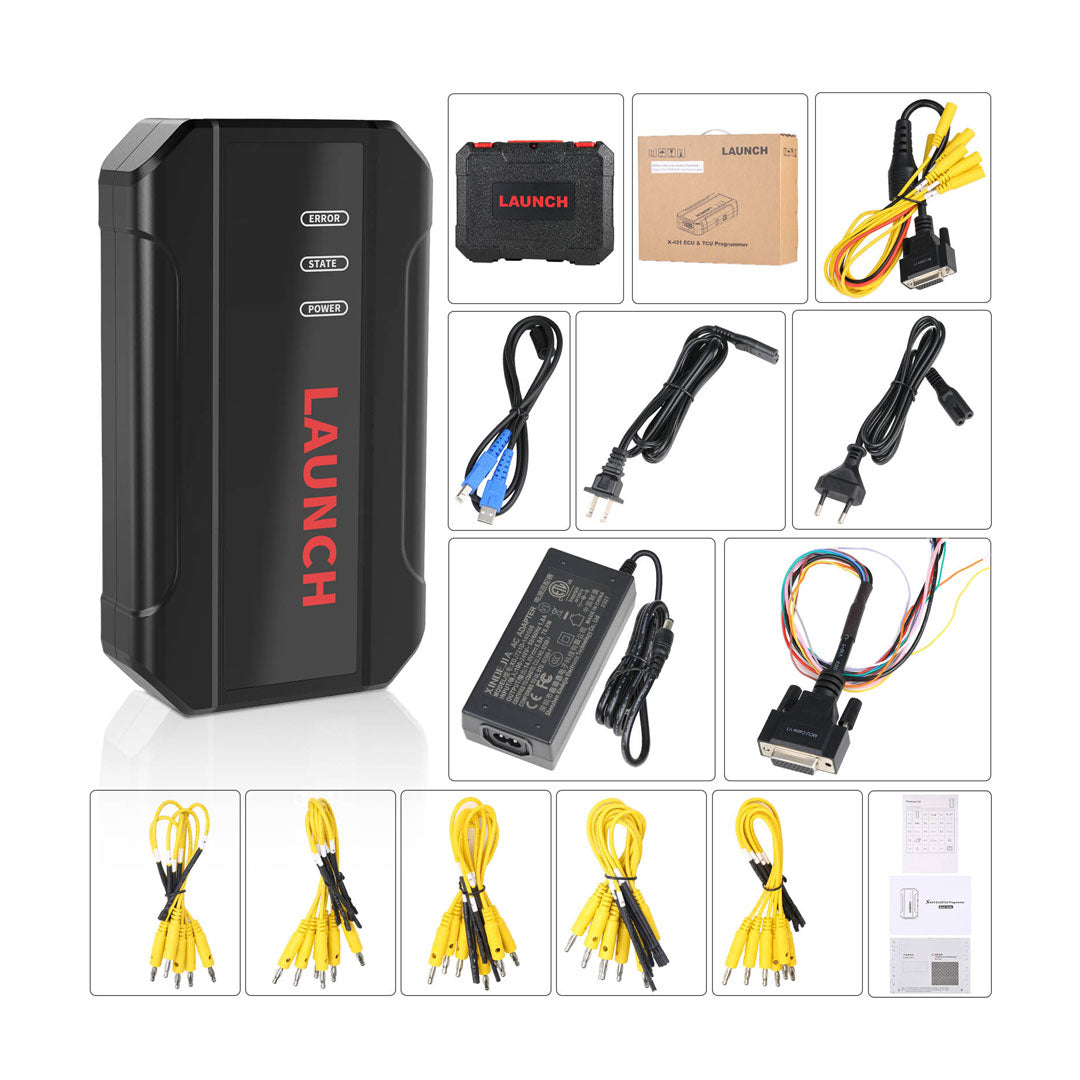

In the box

• ECU & TCU Programmer main unit
• USB cable (type B)
• MCU cable V1
• Bench-mode cable
• Matching Adapter A (5 pcs)
• Matching Adapter B (6 pcs)
• Matching Adapter C (7 pcs)
• Matching Adapter D (8 pcs)
• Matching Adapter E (6 pcs)
• Power supply with EU plug
• Password envelope with the activation code
• User manual and carry case

Gearbox clone adapter cables

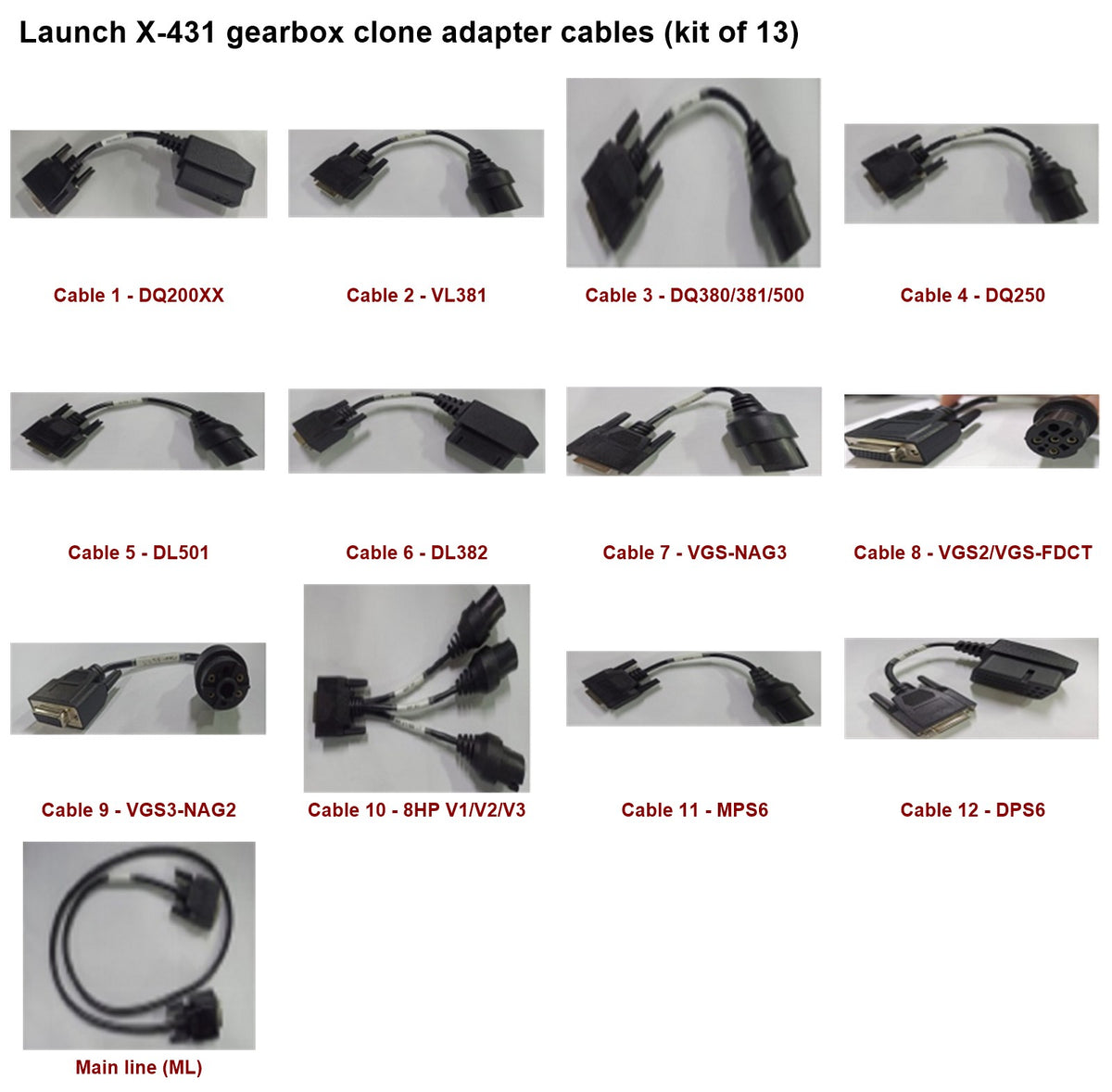

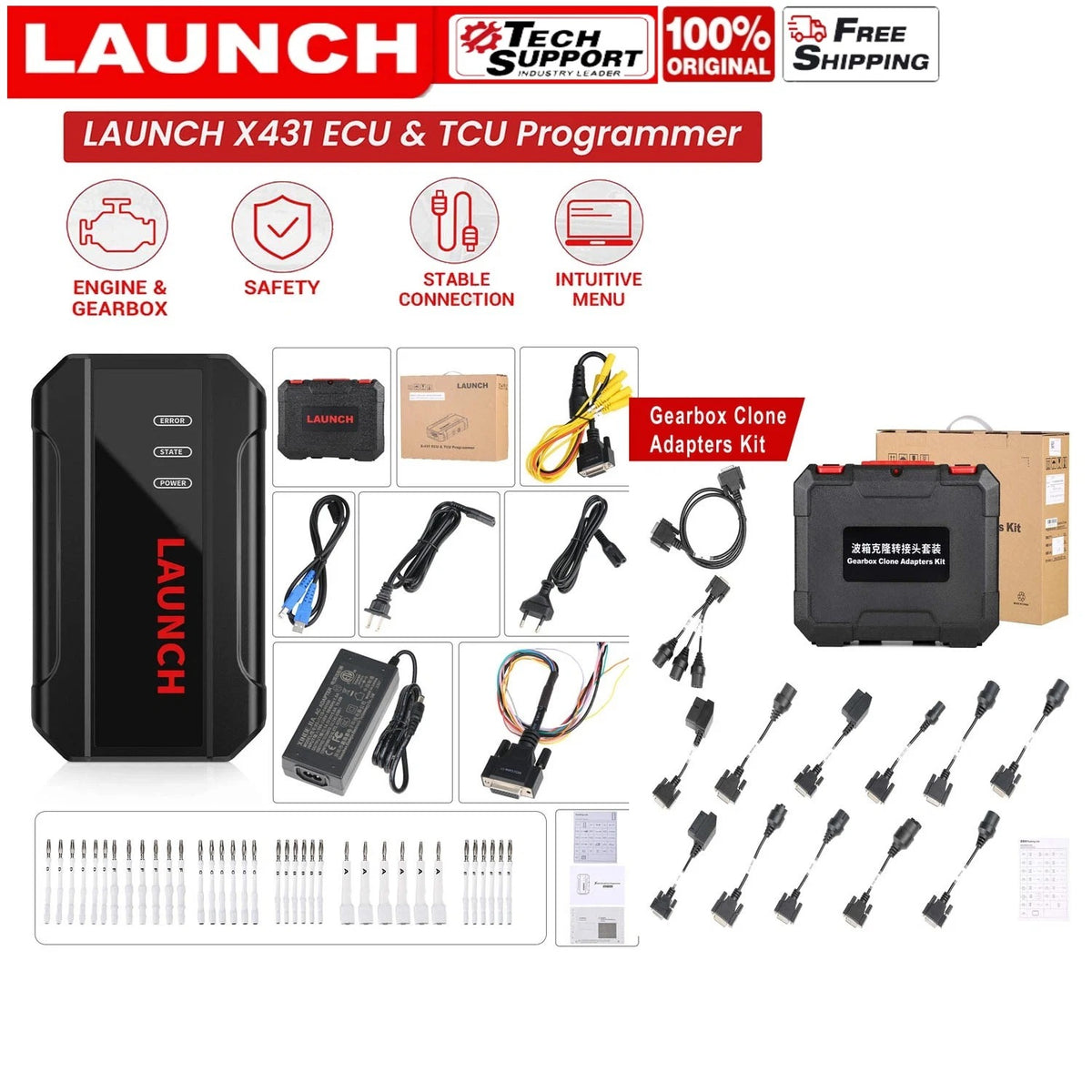

For gearbox cloning, Launch's gearbox clone adapter kit replaces jumper wires: find the cable for your gearbox, plug it in and clone directly. The kit (see the photo of all 13 cables) has 12 gearbox cables and a main line. Ask us when ordering whether the kit is part of your unit or an add-on.

• Adapter Cable 1 (DQ200XX), part 307110077 — DQ200 gearboxes (VW, Audi and others)
• Adapter Cable 2 (VL381), part 307110078 — VL381 gearboxes (VW, Audi)
• Adapter Cable 3 (DQ380), part 307110079 — DQ380, DQ381 and DQ500 gearboxes (VW, Audi)
• Adapter Cable 4 (DQ250), part 307110080 — DQ250 gearboxes (VW, Audi)
• Adapter Cable 5 (DL501), part 307110081 — DL501 gearboxes (VW, Audi, Porsche)
• Adapter Cable 6 (DL382), part 307110082 — DL382 gearboxes (VW, Audi)
• Adapter Cable 7 (VGS-NAG3), part 307110083 — VGS-NAG3 gearboxes (Mercedes-Benz, Nissan)
• Adapter Cable 8 (VGS2-FDCT / VGS-FDCT), part 307110084 — VGS-FDCT and VGS2-FDCT gearboxes (Mercedes-Benz, Infiniti)
• Adapter Cable 9 (VGS3-NAG2), part 307110085 — VGS3-NAG2 gearboxes (Mercedes-Benz)
• Adapter Cable 10 (8HP_V1 BMW/LR, 8HP_V2, 8HP_V3), part 307110086 — ZF 8HP, AL450, AL551 and AL552 gearboxes (BMW, Land Rover, Jaguar, Chrysler, Jeep, Alfa Romeo, Maserati and others)
• Adapter Cable 11 (MPS6), part 307110087 — MPS6 and MPS6 Gen3 gearboxes (Ford, Renault, Volvo, Land Rover and others)
• Adapter Cable 12 (DPS6), part 307110088 — DPS6 gearboxes (Ford)
• Adapter Cable Main Line (ML), part 307110089 — extension wire between the programmer and the gearbox harness

Updates

A free update subscription is included. When it expires, the functions already released keep working, but new updates cannot be downloaded until it is renewed.

Important

Reading and writing control units can affect emissions compliance, the vehicle warranty and anti-theft systems. Use it only on vehicles you own or are authorised to work on. A failed write can damage a control unit, so always keep the original backup.

Warranty

Genuine Launch unit with manufacturer warranty. Not sure it suits your job? Ask us and we will tell you honestly.
